Perforated Metal Plate Combining Functional Properties Light Transmission Sound Insulation and Decoration with Strong Customization
| สถานที่กำเนิด | จีน |
|---|---|
| ชื่อแบรนด์ | TT |
| ได้รับการรับรอง | ISO9001 |
| หมายเลขรุ่น | รองรับการปรับแต่งตามแบบ |
| จำนวนสั่งซื้อขั้นต่ำ | 100 ชิ้น |
| ราคา | USD3-10 /SET |
| รายละเอียดการบรรจุ | พาเลทในภาชนะหรือตามคำขอ |
| เวลาการส่งมอบ | 5-8 วันทำการ |
| เงื่อนไขการชำระเงิน | L/C, D/A, D/P, T/T เวสเทิร์นยูเนี่ยน |
| สามารถในการผลิต | 1,000 ตร.ม. ต่อวัน |
รายละเอียดสินค้า
| เน้น | perforated metal plate light transmission,perforated metal plate sound insulation,customizable perforated metal plate |
||
|---|---|---|---|
รายละเอียดสินค้า

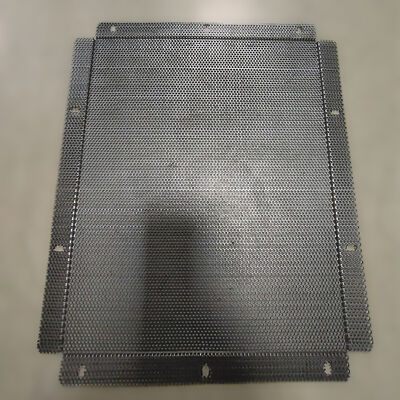

Perforated Metal Plate Combining Functional Properties Light Transmission Sound Insulation and Decoration with Strong Customization
Perforated Metal Mesh, alternatively referred to as Perforated Sheet, is a metal product manufactured by creating various regular or irregular holes on metal sheets through precision stamping equipment. It combines structural strength with versatility, enabling its wide application in diverse industrial scenarios. Furthermore, it can be customized in terms of specifications, materials, colors, and surface treatments to meet the demands of different application environments.
I. Core Product Features
Stable Structure: Adopting one-piece stamping forming technology, the evenly distributed holes do not damage the original structure of the sheet. It boasts excellent compression and tensile performance, is not easy to deform or break, and has a long service life.
Multi-functional Adaptability: It possesses multiple properties including ventilation, light transmission, filtration, sound insulation, anti-slip, and decoration. The functional focus can be adjusted according to hole specifications to meet the needs of different scenarios.
Strong Customization Capability: Materials, hole diameter, hole shape, sheet specifications, and colors can all be customized as required, flexibly matching the personalized needs of various fields such as industry, construction, and decoration.
Easy Installation and Maintenance: With light weight and a simple structure, it can be directly cut, spliced, and installed. No complex maintenance is required in the later stage, and it is easy to clean, thus reducing usage costs.
II. Important Parameters (Core Specifications)
Sheet Specifications: Thickness ranges from 0.3mm to 12mm (conventional 0.5mm to 5mm); width ranges from 300mm to 1500mm; length ranges from 1000mm to 6000mm (can be cut on demand and customized into special sizes).
Hole Diameter Specifications: Hole diameter ranges from 0.5mm to 100mm (conventional 1mm to 20mm); hole pitch (center distance) ranges from 1mm to 150mm. The density of holes can be customized, and the hole arrangement modes include straight row, staggered row (most commonly used), and diagonal row.

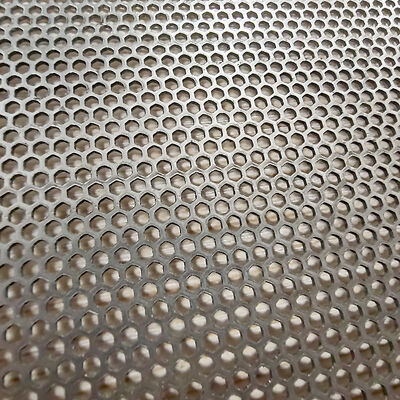

Hole Shape: Conventional hole shapes include circular, square, rectangular, slotted, and hexagonal; customized hole shapes include diamond, plum blossom, five-pointed star, and irregular decorative holes. Among these, circular holes are the most widely used and have the strongest adaptability.
Open Area Ratio: 5% to 60% (adjustable on demand). The open area ratio directly affects ventilation, light transmission, and filtration effects. A higher open area ratio leads to better ventilation and light transmission, while a lower ratio ensures higher structural strength.
Tolerance Range: Sheet thickness tolerance is ±0.05mm to ±0.2mm; hole diameter tolerance is ±0.03mm to ±0.1mm; dimensional tolerance is ±1mm to ±3mm (adjusted according to specification size, and tolerance accuracy can be improved for precision requirements).
III. Material Selection
Suitable materials can be selected based on the application environment (such as corrosion, high temperature, and load-bearing requirements). Conventional materials are as follows:
Stainless Steel (Most Commonly Used): Materials include 304, 316, and 316L. It is corrosion-resistant, high-temperature resistant, and not prone to rust, making it suitable for outdoor, humid, and acid-base environments such as chemical, marine, and food processing fields.
Carbon Steel (Ordinary Steel): Q235 material. It features low cost and high strength, suitable for indoor dry environments and non-load-bearing scenarios. Its corrosion resistance can be improved by combining with surface treatment.
Galvanized Steel: Available in hot-dip galvanized and electro-galvanized types. A galvanized layer is added on the basis of carbon steel, providing better corrosion resistance than ordinary carbon steel. It is suitable for outdoor fences, municipal facilities, and other scenarios.
Aluminum Sheet: Light in weight, good in ductility, corrosion-resistant, and attractive in appearance. It is suitable for fields requiring light weight and aesthetic performance, such as decoration, aerospace, and automotive industries.
Copper Sheet: Possesses excellent electrical conductivity, thermal conductivity, and corrosion resistance. It is suitable for electronic equipment, chemical industry, and decorative fields with high performance requirements.
IV. Color Selection
The color of the perforated metal mesh is determined by its surface treatment process. Both conventional and customized colors are available to meet different decorative and functional needs:
Conventional Colors: Silver (original color of stainless steel/aluminum), gray (galvanized color), black, white, grayish blue, and red (powder coating colors). These are widely used in general industrial and construction scenarios.
Custom Colors: According to the customer's Pantone color number or sample, we can provide customized powder coating, anodizing, or painting colors to match the overall design style of the project, such as architectural facades and interior decoration scenarios.
V. Applications
With its multi-functional characteristics, perforated metal mesh is widely used in various fields, including industry, construction, decoration, environmental protection, and more. Specific applications include but are not limited to:
Construction Field: Building facades, ceilings, partitions, sunshades, sound barriers, stair railings, and exterior wall decoration. It can enhance the aesthetics and practicality of buildings.
Industrial Field: Machine guards, filters, sieve plates, ventilation grilles, noise reduction equipment, and conveyor belt screens. It is used in chemical, pharmaceutical, food, metallurgy, and other industries.
Decoration Field: Indoor ceiling decoration, wall decoration, furniture decoration, exhibition hall layout, and advertising signs. It can create a unique decorative effect.
Environmental Protection & Municipal Field: Sewage treatment filters, garbage screening, municipal greening fences, road sound barriers, and public facility decoration.
Other Fields: Automotive parts, aerospace components, electronic equipment casings, and household appliances (such as air conditioner filters), meeting the special functional needs of different industries.
VI. Product Advantage Comparison
Compared with other similar mesh products (such as ordinary metal plates, woven metal mesh, and plastic mesh), perforated metal mesh has obvious comprehensive advantages, which are specifically compared as follows:
|
Comparison Item
|
Perforated Metal Mesh
|
Ordinary Metal Plate
|
Woven Metal Mesh
|
Plastic Mesh
|
|
Structural Strength
|
High (one-piece stamping, no damage to the original structure, strong compression and tensile performance, not easy to deform)
|
High (but no holes, poor functional adaptability)
|
Medium (weaving structure, easy to loose or break at the joint)
|
Low (poor compression resistance, easy to age and break)
|
|
Multi-functionality
|
Strong (integrates ventilation, light transmission, filtration, sound insulation, decoration, etc., adjustable according to hole specifications)
|
Weak (only has load-bearing and protection functions, no ventilation/filtration)
|
Medium (has ventilation and filtration functions, but poor sound insulation and decoration)
|
Medium (simple ventilation and filtration, poor sound insulation and durability)
|
|
Customization Capability
|
Strong (customizable in material, hole shape/size, sheet specification, color, open area ratio)
|
Weak (only customizable in size and material, no hole-related customization)
|
Medium (customizable in mesh size and material, limited hole shape options)
|
Medium (customizable in size and color, poor material and structural customization)
|
|
Installation & Maintenance
|
Easy (light weight, can be cut/spliced directly, easy to clean, no complex later maintenance)
|
Difficult (heavy weight, difficult to cut and install, high maintenance cost)
|
Medium (easy to install but easy to get dirty and difficult to clean)
|
Easy (light weight, easy to install, but easy to age and need frequent replacement)
|
|
Applicable Scenarios
|
Wide (industry, construction, decoration, environmental protection, aerospace, etc.)
|
Limited (mainly load-bearing, protection scenarios such as machinery and buildings)
|
Medium (mainly filtration, screening scenarios such as industry and agriculture)
|
Limited (mainly light-duty ventilation, isolation scenarios such as agriculture and daily use)
|
|
Durability
|
High (corrosion-resistant, high-temperature resistant optional, long service life)
|
High (but easy to rust without surface treatment)
|
Medium (easy to corrode and loose, short service life)
|
Low (easy to age, brittle and break under high temperature/load)
|
It can be seen that perforated metal mesh achieves a balance between structural strength and multi-functionality, and its strong customization capability and wide applicability make it more competitive than other similar products in most scenarios.
-
|Frequently Asked Questions
-
Q: Are you trading company or manufacturer?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally 5-10 days for in-stock items, or 15-20 days for out-of-stock items depending on quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we offer samples but customers must cover the cost and freight.
Q: What are your payment terms?
A: For orders ≤1000USD, 100% in advance. For orders ≥1000USD, 50% T/T in advance with balance before shipment.
For additional questions, please feel free to contact us.
